VORGENS-YourReliablePartner QDB-5A Review: An Upgraded Automotive Diagnostic Multitool
The VORGENS QDB-5A Ignition Coil Tester is a versatile diagnostic tool that adds oscilloscope, PWM, and step motor functions to traditional coil testing, making it a capable choice for mechanics and serious DIYers.
By Elvis Dicki
Updated October 20, 2026
Automotive diagnostics demand precision tools that can handle the diverse electronic components found in modern vehicles, from ignition coils and fuel injectors to PWM-controlled solenoids and urea pump motors. The VORGENS-YourReliablePartner QDB-5A positions itself as an upgraded solution in this space, moving beyond a simple ignition coil tester to become a multifunctional actuator drive detector. This review analyzes its specifications, features, and design to determine its place in a workshop or garage. For mechanics, technicians, and advanced DIY enthusiasts, the VORGENS-YourReliablePartner QDB-5A offers a consolidated tool for testing a wide array of automotive components, with its strongest quality being the integration of several diagnostic functions into a single device.
The core value of the QDB-5A lies in its expanded capability set. While the name suggests a focus on ignition coils, the manufacturer details support for fuel injectors, PWM-controlled solenoid valves, and step motors, backed by functions like an oscilloscope and adjustable signal outputs. This review will examine its design, performance features, and the practical aspects of setup and ownership based solely on the available product data. We will also consider its suitability for different users, from professional automotive technicians to dedicated hobbyists working on projects ranging from compact cars to heavy-duty trucks.
VORGENS QDB-5A Ignition Coil Tester
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
VORGENS-YourReliablePartner QDB-5A at a Glance
| Specification | Detail |
|---|---|
| Brand | VORGENS-YourReliablePartner |
| Model | QDB-5A |
| Primary Function | Ignition Coil & Actuator Drive Testing |

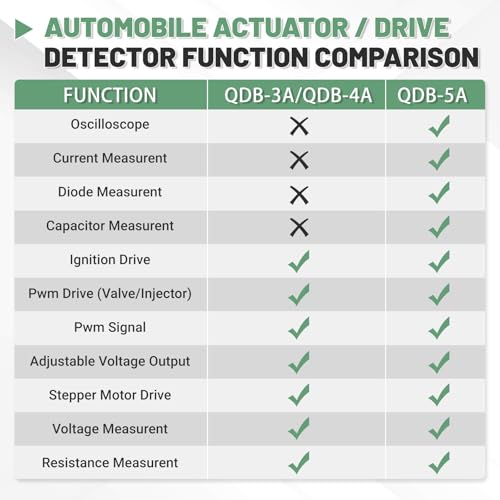

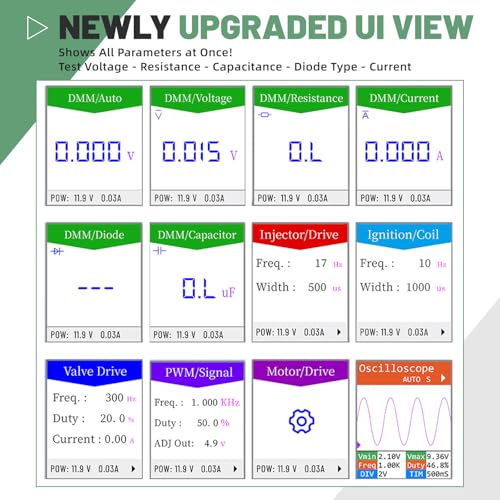

| Key Upgraded Functions | Ignition Drive, Oscilloscope, Current/Resistance/Voltage Measurement, PWM Signal & Drive, Step Motor Drive, Voltage Output Adjustment |

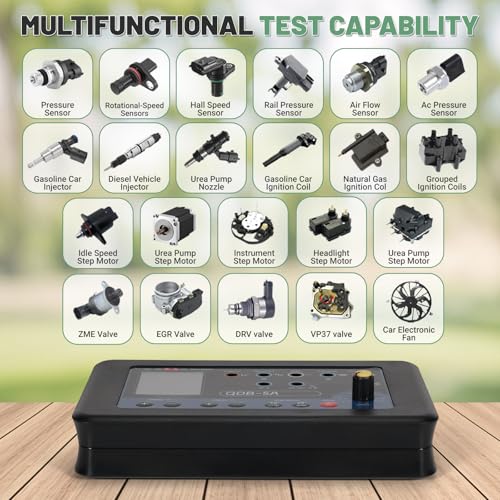

| Supported Components | Ignition Coils, Fuel Injectors, PWM-Controlled Solenoid Valves, Urea Pump Motors, Sensor Signals, Step Motors |
| Adjustable Parameters | Coil Current (0-3.5A), Frequency (1Hz-100kHz), Duty Cycle (1%-100%) |
| Safety Features | Auto-protection against Reverse Polarity and Over-Current |

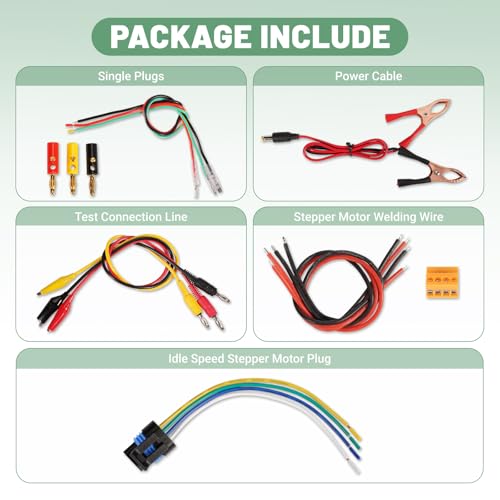

| Included Accessories | Power Cable, 3 Single Plugs, Idle Speed Stepper Motor Plug, Stepper Motor Welding Cable, Instruction Book |
| Item Weight | 9.6 ounces |
| Vehicle Compatibility | Compact Cars to Heavy-Duty Trucks |
Design and Build
Based on the provided specifications, the VORGENS QDB-5A is a dedicated handheld diagnostic tool. With a listed weight of 9.6 ounces, it is designed for portability and ease of use in a workshop or garage environment. The physical design centers around its functional interface, which must accommodate controls for its multiple testing modes and adjustable parameters like current, frequency, and duty cycle. The inclusion of specific connection plugs—such as the idle speed stepper motor plug and stepper motor welding cable—indicates a design philosophy focused on providing the necessary physical interfaces for direct connection to various automotive components without requiring immediate additional adapters.
The build considerations appear to prioritize utility and protection. The manufacturer explicitly mentions built-in auto-protection against reverse polarity and over-current, which are critical safety features for any device that interfaces directly with a vehicle’s electrical system. This protection helps safeguard both the tool and the vehicle’s sensitive electronics during testing procedures. The tool’s compatibility range, stated to be from compact cars to heavy-duty trucks, suggests a robust internal design capable of handling the varying electrical loads and conditions found across different vehicle classes. The package is completed with an instruction book, which is essential for navigating the device’s upgraded and potentially complex set of functions.
Performance and Features
Core Diagnostic Functions

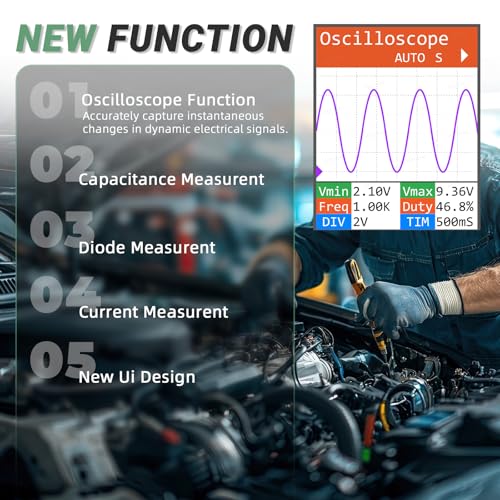

The performance of the QDB-5A is defined by its six upgraded functions, which significantly expand its utility beyond basic coil testing. The ignition drive function allows the user to actively drive an ignition coil to check for spark, a fundamental diagnostic step. Perhaps the most notable addition is the oscilloscope function, which enables the visualization of electrical signals. This is a powerful feature for diagnosing intermittent faults, analyzing signal integrity from sensors, or observing the pulse waveform of fuel injectors and PWM solenoids. The ability to measure current, resistance, and voltage adds basic multimeter capabilities, consolidating tools for common electrical checks.
Specialized Actuator Testing
Where the QDB-5A aims to stand out is in its support for specialized automotive actuators. The PWM signal and drive function is crucial for testing modern components like variable valve timing solenoids, turbocharger wastegate actuators, or fuel pressure control valves that use Pulse Width Modulation for precise control. Similarly, the step motor drive function is tailored for testing idle air control valves and other stepper motor-actuated components. The voltage output adjustment feature provides a variable power source for bench-testing components or simulating different operating voltages, adding another layer of diagnostic flexibility.
Adjustable Parameters and Compatibility
The tool’s versatility is further enhanced by its adjustable output parameters. The ability to fine-tune coil current from 0 to 3.5A, frequency from 1Hz to 100kHz, and duty cycle from 1% to 100% allows users to simulate a wide range of operating conditions. This is essential for accurately testing components across different vehicle makes and models, each with their own specific control signals. The stated compatibility with ignition coils, fuel injectors, PWM-controlled solenoid valves, and urea pump motors covers many of the most common electronically controlled actuators in both gasoline and diesel engines. For more insights on specialized tools and gear, explore our Tech Gear section.
Setup, Support and Ownership
Setup for the QDB-5A involves connecting the provided power cable to a vehicle’s battery or another suitable 12V power source, as the device itself requires external power to operate. The included assortment of connection plugs—three single plugs, an idle speed stepper motor plug, and a stepper motor welding cable—covers the initial physical interfacing needs for the components it is designed to test. Users will need to refer to the included instruction book to correctly identify the appropriate plug and settings for each specific test, given the device’s multiple functions. The need to manage several plugs and cables is a noted part of the setup process.
Regarding long-term ownership and support, the manufacturer data does not specify warranty length, availability of firmware updates, or direct customer service channels. The brand name, VORGENS-YourReliablePartner, implies a focus on durability and support, but specific policies are not listed in the provided information. The tool does not appear to require software installation or regular updates for its core hardware-based functions. Ownership primarily revolves around the safe storage of the device and its various cables and plugs to ensure all components are available when needed for a diagnostic session. For other detailed product examinations and expert selections, you can find more in our Reviews category.
What Owners Say
Based on the aggregated rating, the VORGENS QDB-5A has received positive feedback from users. The overall rating reflects general satisfaction with the product’s performance and capabilities. While specific review excerpts are not available in the provided data, a high aggregate score for a technical tool like this typically indicates that users find it effective for its stated purposes, reliable in operation, and a good value for the functions it provides. The rating suggests that the upgraded features, such as the oscilloscope and PWM drive functions, are appreciated by those who have used the tool in practical automotive diagnostic scenarios.
Pros and Cons
Pros
- Multifunctional design combining several diagnostic tools
- Includes an oscilloscope for signal visualization
- Adjustable current, frequency, and duty cycle for precise testing
- Built-in reverse polarity and over-current protection
- Supports a wide range of components (coils, injectors, solenoids, pumps)
- Comes with necessary connection cables and plugs
Cons
- Requires an external power source via included cable
- Setup involves managing multiple specific plugs
- Reliance on the provided instruction book for operation
- No manufacturer data on warranty or update support
- Functionality may have a learning curve for beginners
- Designed for component testing, not full vehicle system scanning
Who Should Buy It (and Who Should Skip It)
The VORGENS-YourReliablePartner QDB-5A is an ideal tool for automotive professionals, independent mechanics, and serious DIY enthusiasts who frequently diagnose ignition, fuel, and emission system faults. Its value is greatest for those who need to bench-test or vehicle-test individual components like fuel injectors, ignition coils, and various solenoids without needing a full-featured, brand-specific scan tool. The integrated oscilloscope and PWM generator make it particularly useful for troubleshooting electronic control issues in modern engines. It is also a solid choice for technical educators or students in automotive programs seeking a hands-on tool for understanding actuator operation and signals.
This tool is less suitable for casual car owners looking for a simple check engine light reader or for those who only need very occasional basic diagnostics. Individuals unfamiliar with automotive electrical systems and component pinouts may find the array of functions and connection options overwhelming without prior study. It is not a replacement for a comprehensive OBD2 scanner that can read trouble codes from the vehicle’s computer across all systems. For users whose needs are more centered on computing and digital security rather than mechanical diagnostics, our Cybersecurity resources may be more relevant.
Final Verdict
The VORGENS-YourReliablePartner QDB-5A successfully evolves the concept of an ignition coil tester into a more comprehensive automotive actuator diagnostic tool. Its strength lies in consolidating several useful functions—especially the oscilloscope, PWM drive, and stepper motor test capabilities—into a single, portable unit. For targeted component testing, it offers a level of control and visibility that can help pinpoint faults in ignition systems, fuel delivery, and electronically controlled valves. The adjustable parameters and built-in safety features are thoughtful additions that enhance its practicality and durability in a workshop setting.
While it requires a methodical setup and a learning period to master all its functions, the tool delivers significant diagnostic utility for its intended audience. It fills a niche between a basic test light and a professional-grade scan tool, offering hands-on signal generation and measurement for specific components. For mechanics and advanced DIYers who understand automotive systems and are looking for an efficient way to verify the operation of individual actuators and coils, the QDB-5A presents a capable and versatile option. Its positive user rating supports its effectiveness in real-world applications. For more expert analysis on technology products, check out our AI & Software insights.
FAQs
What vehicles is the QDB-5A compatible with?
The manufacturer states the QDB-5A is designed to be safe for use on all models, from compact cars to heavy-duty trucks. Its compatibility is based on the electrical characteristics of the components it tests (like 12V systems and common signal types) rather than specific vehicle makes or models. It can test ignition coils, fuel injectors, solenoid valves, and other actuators that operate within its adjustable output ranges of 0-3.5A current and 1Hz-100kHz frequency.
Can this tool read or clear diagnostic trouble codes (DTCs)?
No, based on the provided features, the QDB-5A is a component actuator tester and signal analyzer. It is designed to physically test and drive individual parts like coils and injectors, and to measure signals. It does not have the capability to interface with a vehicle’s OBD2 port to read or clear diagnostic trouble codes stored in the engine control unit (ECU) or other modules. For code reading, a separate OBD2 scanner is required.
What power source does it need?
The QDB-5A requires an external 12V DC power source to operate. The product includes a power cable for this purpose, which is typically connected directly to a vehicle’s battery terminals (observing correct polarity) or to a dedicated 12V power supply when bench-testing components. The device does not have an internal battery; all power for driving components and operating its functions is drawn from this external connection.
Is prior experience needed to use all its functions?
While the basic ignition coil test may be straightforward, effectively using the oscilloscope, PWM signal drive, and stepper motor functions requires a fundamental understanding of automotive electrical systems and the specific component being tested. Users need to know how to identify component connectors, understand signal types, and interpret the results. The included instruction book is essential, but prior experience or concurrent study is highly beneficial for leveraging the tool’s full diagnostic potential and avoiding misdiagnosis.
