ViewSonic LS741HD Review: A 5000-Lumen Laser for Large Venues
The ViewSonic LS741HD is a high-brightness 1080p laser projector built for boardrooms, churches, and auditoriums, offering flexible setup and a long-life light source.
By Elvis Dicki
Updated October 20, 2026
The ViewSonic LS741HD is a professional-grade laser projector engineered to deliver bright, Full HD images in challenging environments with ambient light. Designed for commercial and institutional settings like boardrooms, lecture halls, and sanctuaries, this model prioritizes reliability, installation flexibility, and a virtually maintenance-free operation over consumer-centric features like built-in audio. In short, it’s a specialized tool for large-scale projection where brightness and longevity are paramount.
This review analyzes the LS741HD’s specifications, design, and real-world feedback to determine where this laser projector excels and where its professional focus might not align with a home user’s needs. We’ll examine its core performance, versatile setup features, and the ownership experience based on available data and user reports.
ViewSonic LS741HD 5000 Lumens 1080p Laser
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
ViewSonic LS741HD at a Glance
| Specification | Detail |
|---|---|
| Native Resolution | Full HD 1080p (1920 x 1080) |
| Brightness | 5000 ANSI Lumens |
| Light Source & Life | Laser Phosphor, up to 30,000 hours |
| Contrast Ratio | 3,000,000:1 |
| Throw Ratio | 1.4 – 2.2 |
| Optical Zoom | 1.6x |
| Max. Screen Size | 300 inches |
| Key Features | H/V Keystone, 360° & Portrait Projection, 4-Corner Adjustment, LAN Control |
| Connectivity | 2x HDMI 1.4, USB 2.0, 3.5mm Audio, Ethernet |
| Operation | Designed for 24/7 Use |
Design and Build
The ViewSonic LS741HD adopts a straightforward, utilitarian white chassis measuring 5 by 11.3 by 8.5 inches and weighing 6.6 pounds. This form factor is described as compact for easier transportation, aligning with its intended use across different presentation spaces. The design supports ceiling mounting, which is typical for permanent installations in venues like churches and auditoriums. The construction centers around a sealed optical engine, a key aspect of its laser phosphor technology that contributes to dust resistance and long-term reliability. There is no mention of built-in speakers, reinforcing its role as a dedicated visual display device meant to be paired with external audio systems.
Performance and Features
Core Visual Performance
The projector’s performance is defined by its 5000 ANSI lumen laser light source and 1080p resolution. This high brightness level is the primary feature, engineered to maintain sharp, clear images in environments with strong ambient lighting, such as a lit boardroom or sanctuary. The laser phosphor technology provides an extended light source life rated for up to 30,000 hours, effectively eliminating the cost and hassle of traditional lamp replacements. Image quality is supported by a Texas Instruments .65” DMD chip and a stated 3,000,000:1 contrast ratio, which the manufacturer says enables deeper blacks and brighter whites for greater visual depth.

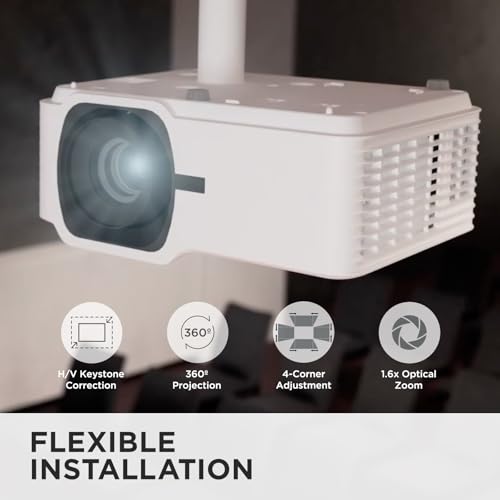

Setup Flexibility and Adjustment

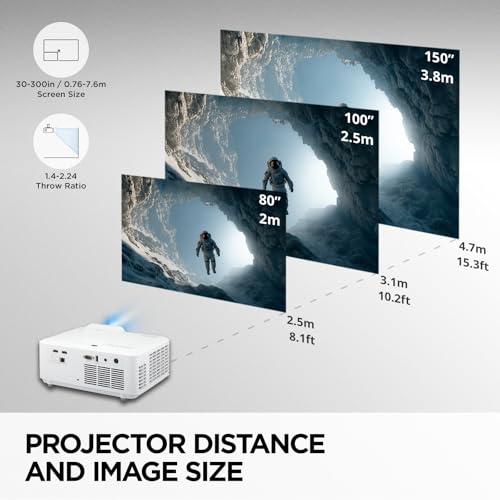

Setup versatility is a major selling point. The 1.6x optical zoom allows for placement flexibility within a throw distance range of 3 to 48.8 feet to achieve screen sizes from 30 to 300 inches. For a 100-inch image, the optimal throw distance is listed as 10.2 feet. Comprehensive image correction tools include vertical and horizontal (H/V) keystone, four-corner adjustment, and even 0.8x to 2.0x digital zoom. Unusually, the projector supports 360-degree projection and portrait mode, enabling creative mounting options like floor or tilted ceiling setups. It’s important to note that keystone correction is manual, not automatic.
Connectivity and Control
Connectivity is geared towards professional sources. It includes two HDMI 1.4 ports with HDCP 1.4 support for connecting multiple devices like laptops and media players. Other ports are a USB 2.0 Type-A, a 3.5mm audio output, and an Ethernet port. The Ethernet port enables advanced LAN control, allowing for remote management, scheduling, and power control via protocols like Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s own vController software. This feature is critical for integrated AV systems in corporate or educational environments. The projector also features instant power on/off, reducing downtime between presentations.
Specialized Modes
A notable specialized feature is Golf Mode, which is designed to support major golf simulators for immersive, lifelike play on virtual courses. This indicates the projector’s capability beyond standard presentations, catering to the simulation and entertainment market. The device is also rated for 24/7 continuous operation, classifying it as an industrial-grade product suitable for digital signage or constant-use scenarios.
Setup, Support and Ownership
Setup requires careful planning around throw distance and the use of manual adjustment features like keystone and corner correction to achieve a perfectly aligned image. For a permanent installation, this is a one-time task. The projector does not include audio hardware, so users must budget for and integrate external speakers. Ownership is simplified by the long-life laser engine, which avoids recurring lamp replacement costs. The manufacturer provides a three-year limited warranty on parts and labor. For software control and updates, the LAN control system and vController software offer management options, though specific firmware update procedures are not detailed in the provided data.
What Owners Say
Owner feedback is exceptionally positive, with a perfect rating from all reviewers. The dominant praise centers on the projector’s exceptional brightness and image clarity, with specific mentions of it working perfectly in well-lit church sanctuaries and large rooms. Users highlight the vivid, dynamic colors and crisp picture. The abundance of features for screen adjustment is also frequently commended for allowing a perfect fit. One reviewer confirmed the brightness with a light meter, noting it met expectations. A minor point raised is that the manual keystone correction can be a pain for non-permanent setups, but for fixed installations, it is considered perfect. Users have successfully paired it with live video feeds via HDMI dongles for large-screen presentations.
Pros and Cons
Pros
- Extremely high 5000-lumen brightness for use in lit rooms
- Long-life laser source eliminates lamp maintenance
- Highly flexible setup with zoom, keystone, and 360-degree projection
- Professional LAN control for remote management
- Designed for reliable 24/7 operation
- Crisp Full HD image quality with high contrast
Cons
- HDMI 1.4 ports lack support for newer high-bandwidth video formats
- Requires careful calculation of throw distance for desired screen size
- No built-in speakers, requiring a separate audio system
- Manual keystone may be inconvenient for temporary setups
- Professional focus means it lacks smart TV or streaming features
- Higher power consumption (210 watts) compared to home projectors
Who Should Buy It (and Who Should Skip It)
The ViewSonic LS741HD is an ideal choice for businesses, educational institutions, houses of worship, and venues that need a bright, reliable projector for large screens in environments with ambient light. It’s perfect for boardrooms, lecture halls, church sanctuaries, golf simulators, or digital signage that runs continuously. Its LAN control and installation flexibility make it a strong fit for professionally managed AV systems.
This projector is not the right fit for most home theater enthusiasts. The lack of built-in audio, HDMI 1.4 limitations, and manual setup adjustments make it less user-friendly for a living room. Those seeking 4K resolution, smart streaming apps, automatic keystone correction, or an all-in-one solution for movie nights should look at dedicated home theater projectors. For more on display technology for different uses, explore our guides on the best monitors and audio solutions.
Final Verdict
The ViewSonic LS741HD laser projector excels in the professional niche it targets. Its 5000-lumen laser output delivers on the promise of bright, clear presentations even under challenging lighting conditions, a fact corroborated by user reviews from churches and large venues. The combination of a 30,000-hour light source, 24/7 operation rating, and advanced LAN control translates to a low-maintenance, highly manageable tool for institutional use. The extensive suite of adjustment features—from optical zoom to 360-degree projection—provides the installation versatility required in diverse commercial spaces.
However, its professional DNA means it makes clear trade-offs. The lack of modern HDMI 2.0 ports, built-in audio, and automatic setup aids positions it as a specialist component within a larger system, not a consumer-friendly plug-and-play device. For the right buyer—a tech manager at a school, a church AV team, or a business outfitting a large conference room—the LS741HD offers a compelling, durable, and performance-focused projection solution. For insights into other specialized tech, consider our resources on tech gear and AI software.
FAQs
Does the ViewSonic LS741HD have built-in speakers?
No, the ViewSonic LS741HD does not include any built-in audio features. It is designed as a visual display device only. Users must connect external speakers to the 3.5mm audio output port or through their video source for sound.
Can this projector be used for home theater?
While possible, it is not ideal for a typical home theater. Its strengths are high brightness and installation flexibility in large, lit rooms. For a dark home theater, its laser light source is beneficial, but the lack of built-in audio, HDMI 1.4 ports, and the need for manual image adjustment make it less convenient than projectors designed specifically for consumer home use.
What does “24/7 operation” mean?
This means the projector is designed and built with industrial-grade components and thermal management that allows it to run continuously, 24 hours a day, 7 days a week, without overheating or premature failure. This makes it suitable for digital signage, control rooms, or any application where the projector must be on constantly.
How does the LAN control work?
The projector includes an Ethernet port that supports various control protocols like PJ Link, Crestron, AMX, and Extron. By connecting it to a network, an IT or AV manager can use compatible software (such as ViewSonic’s vController) to remotely turn the projector on/off, schedule operations, adjust settings, and monitor status from a central computer, which is essential for managing multiple projectors across a campus or building.
