Swift EC5R 5.0MP Review: Can a USB Flash Drive Replace a Software CD?
The Swift EC5R 5.0MP is a budget-friendly digital eyepiece camera offering broad microscope compatibility and useful software for hobbyists and educators, though some users note challenges with focus and image noise.
By Elvis Dicki
Updated October 20, 2026
For microscope enthusiasts, educators, and hobbyists looking to digitize their view, the Swift EC5R 5.0MP presents itself as an accessible entry point. This 5.0-megapixel digital camera is designed to mount directly into a microscope’s eyepiece tube, transforming an optical instrument into a digital imaging station capable of capturing still photos and live video. It targets users who need to share microscopic views with an audience, document specimens, or perform basic image analysis without a significant investment. While it promises ease of use with a plug-and-play USB connection and cross-platform software, its real-world performance is a mix of convenient features and reported limitations from users.
At its core, the Swift EC5R is a tool for visualization and sharing, not necessarily for high-end scientific publication. It is built for compound and stereo microscopes, making it suitable for classrooms, clinics, or home labs where the primary goal is to display a live feed or capture reference images. The bottom line: this camera offers a functional and affordable path to digital microscopy for casual and instructional use, but prospective buyers should be aware of its constraints regarding image quality and autofocus behavior as noted in user feedback.
Prime SWIFT EC5R 5MP USB Digital Eyepiece Microscope
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Swift EC5R 5.0MP at a Glance
| Specification | Detail |
|---|---|
| Model Name | EC5R 5.0MP |
| Sensor Resolution | 5.1 Megapixels |
| Maximum Image Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps at full resolution |
| Sensor Type | Sony Back-illuminated CMOS |
| Connection | USB 2.0 |
| Compatible Eyepiece Tubes | 23.2mm, 30mm, 30.5mm (adapters included) |
| Software Delivery | Included USB flash drive |
| Supported Operating Systems | Windows 7-11 (32/64-bit), Mac OS X, Linux |
| Item Dimensions | 1.18″L x 1.18″W x 2.11″H |
Design and Build
The Swift EC5R 5.0MP adopts a compact, cylindrical design meant for minimal intrusion. With dimensions of roughly 1.18 inches in diameter and 2.11 inches in height, it is built to slide directly into a microscope’s eyepiece tube. The enclosure material is listed as polyethylene and polystyrene, which suggests a lightweight and durable plastic construction suitable for regular handling in educational or hobbyist environments. The camera’s primary physical feature is its mounting mechanism, which is natively sized for a 23.2mm tube. The package includes two additional adapter sleeves to fit the more common 30mm and 30.5mm microscope eyepiece tubes, significantly broadening its compatibility with various microscope models, from older educational units to more modern stereo microscopes.
The design is purely functional, with no onboard controls or displays; all interaction is managed through the connected computer software. A fixed USB 2.0 cable provides both data transfer and power, eliminating the need for a separate power adapter and helping to reduce desk clutter. This corded electric setup means the camera is always ready when connected, with no batteries to manage. The overall build appears geared towards simplicity and adaptability, prioritizing a straightforward physical connection over complex adjustments on the hardware itself.
Performance and Features
Imaging Core and Video Performance
The camera’s imaging performance is centered on a 5.1-megapixel Sony back-illuminated CMOS sensor, which is noted in the manufacturer’s features for providing higher sensitivity and a better signal-to-noise ratio compared to conventional sensors. This should, in theory, allow for clearer live views in varying lighting conditions on the microscope stage. The maximum still image resolution is 2592 by 1944 pixels. For video, the camera can deliver a live feed at up to 30 frames per second at its maximum resolution, as well as at lower resolutions like 1280×960 and 640×480. This frame rate is intended to keep motion smooth for observing moving specimens like microorganisms. The manufacturer lists a dynamic range of 66dB and a signal-to-noise ratio of 42dB, which are technical indicators of the sensor’s ability to handle contrast and minimize grain.
Connectivity and Compatibility
Connectivity is handled exclusively by a USB 2.0 interface. While this is a ubiquitous and easy-to-use standard, it is an older specification that may limit data transfer speeds compared to USB 3.0 or later, though for a 5MP stream at 30fps, USB 2.0 is typically sufficient. A key strength of this product is its broad software compatibility. The camera is listed as working with Windows Vista through Windows 11 in both 32 and 64-bit versions, Mac OS X, and Linux. This cross-platform support makes it a flexible choice for labs or classrooms with mixed computer ecosystems. The software itself is provided on a USB flash drive included in the box, a notable convenience over the now-obsolete CD-ROM, and is also available for download online.
Software and Analytical Features
The included software, often referenced as “EasyView” or Swift imaging software, is described as feature-packed. According to the product description, it enables users to not only capture images and video but also perform a range of post-processing and analysis tasks. These advanced features reportedly include image stitching (combining multiple images into a panorama), extended depth of focus (combining images taken at different focal planes), annotations, measurements, and the application of watermarks. The software also supports precision multi-magnification calibration, allowing users to set accurate measurement scales at different microscope objectives, though a calibration slide is not included. The interface is noted by some users as being intuitive, which supports the product’s goal of being an accessible tool for non-experts.
Setup, Support and Ownership

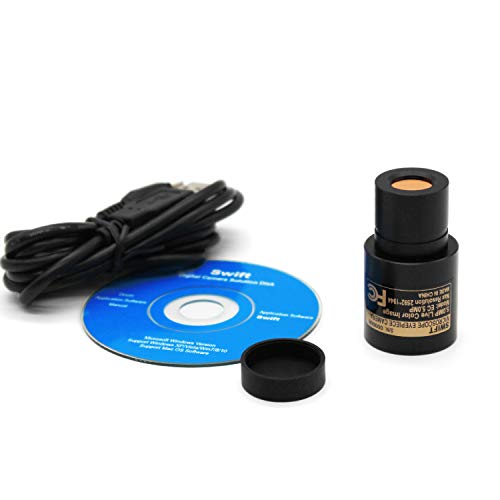

Setup is marketed as a simple three-step process: slide the camera into the eyepiece tube, connect the USB cable to a computer, and launch the software. The inclusion of physical adapters for different tube sizes and the software on a USB drive are designed to streamline this process. For support and updates, the manufacturer indicates that software is available for download online, and their support team can provide alternative access if needed, suggesting a level of ongoing product support. There is no specific information listed regarding warranty length or the availability of firmware updates for the camera hardware itself.

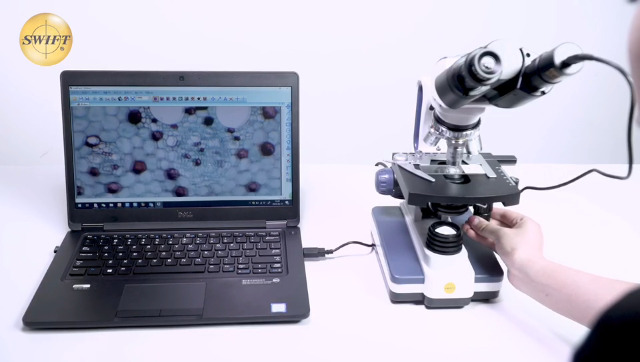

In terms of ownership, this is a standalone accessory that does not require other upgrades or specific accessories to function. The product is a complete kit. Users looking to expand its utility might consider it as part of a broader digital microscopy setup, perhaps connecting it to a projector or large monitor for group viewing, a use case for which it is explicitly designed. Its compact and corded design implies low maintenance, with no consumable parts like bulbs to replace, aside from the microscope’s own illumination.
What Owners Say
Owner feedback presents a balanced picture of the Swift EC5R 5.0MP’s performance in real-world conditions. The overall rating distribution shows a majority of positive experiences, with over half of the reviews being five-star. Positive reviewers frequently praise the camera for working “right out of the box,” the convenience of the software on a USB drive, and the powerful, easy-to-use features of the accompanying application. Many confirm it works well for its intended purpose in educational and hobbyist contexts, such as viewing cells and microorganisms, and consider it an excellent value.
However, critical reviews highlight consistent issues. A significant complaint involves the camera’s autofocus behavior, with some users reporting frustration as the camera attempts to focus automatically, making it difficult to achieve a sharp image manually. Other users note that images can appear noisy and that colors may be somewhat inaccurate, though they mention this can sometimes be calibrated within the software. Some also point out that the field of view is rectangular, which crops the circular view seen through the eyepiece, potentially losing peripheral detail. These experiences suggest that while the camera is functional and capable, it may require patience and software tweaks to achieve optimal results.
Pros and Cons
Pros
- Broad compatibility with Windows, Mac, and Linux operating systems.
- Easy installation with software provided on a USB flash drive.
- Includes adapters to fit three common microscope eyepiece tube sizes (23.2mm, 30mm, 30.5mm).
- Feature-rich software enables measurements, stitching, and annotations.
- Sony back-illuminated sensor for improved sensitivity in low light.
- Plug-and-play USB 2.0 setup reduces complexity.
Cons
- Autofocus system can be problematic, requiring manual workarounds.
- Images may exhibit noise and somewhat inaccurate color reproduction.
- USB 2.0 connection is slower than modern USB standards.
- Rectangular image sensor crops the microscope’s circular field of view.
- Performance may be limited for professional or high-precision applications.
- Some users report better results using a handheld camera at the eyepiece.
Who Should Buy It (and Who Should Skip It)
The Swift EC5R 5.0MP is ideally suited for educators, instructors, and serious hobbyists who need a simple, affordable way to share a microscope’s view with a group or capture basic digital images for records and presentations. Its cross-platform support and included adapters make it a versatile choice for schools, clubs, or home labs with diverse equipment. If your primary needs are live demonstration, student instruction, or casual documentation of specimens like plant cells or insects, this camera provides a capable and cost-effective solution.
This camera should likely be skipped by professionals or researchers requiring high-fidelity, publication-quality images, precise color accuracy, and reliable autofocus. Users who are frustrated by technical fiddling or software calibration may also want to consider other options. As noted in some reviews, if your work involves quantifying fine details or requires the full optical field of view, the limitations in image noise, color calibration, and the cropped sensor area may prove to be significant drawbacks.
Final Verdict
The Swift EC5R 5.0MP successfully fulfills its role as an accessible digital bridge for the microscope. Its strengths lie in its thoughtful conveniences—like the software on a USB drive and multiple physical adapters—and its competent software suite that goes beyond simple capture. For its target audience of educators and enthusiasts, it removes major barriers to digital microscopy by being easy to set up and broadly compatible. The Sony sensor provides a solid foundation for live viewing, making it a practical tool for demonstrations and exploratory learning.
However, the user feedback cannot be ignored. The reported autofocus quirks and image quality inconsistencies mean this is not a “set it and forget it” device for everyone. Achieving good results may involve engaging with the software’s calibration tools and accepting some compromises. Therefore, while it is an excellent value and a capable performer for entry-level and instructional use, it is best approached with realistic expectations about its limitations for precision work. For more insights on specialized tech gear, explore our related Tech Gear content.
FAQs
What microscopes is the Swift EC5R 5.0MP compatible with?
The camera is designed to fit compound and stereo microscopes with eyepiece tubes of 23.2mm, 30mm, or 30.5mm diameters. It comes with the camera body sized for 23.2mm tubes and includes two additional adapter sleeves to fit 30mm and 30.5mm tubes, covering a wide range of common microscope models.
Does it work with the latest versions of Windows and Mac OS?
Yes, according to the manufacturer’s specifications, the camera software is compatible with Windows 7, 8, 10, and 11 in both 32-bit and 64-bit versions. It is also listed as compatible with Mac OS X. The software is provided on a USB flash drive and is also available for download online.
Can I use this camera for making measurements of specimens?
The included software has measurement capabilities. It supports precision multi-magnification calibration, which allows you to set a measurement scale (e.g., micrometers per pixel) for each objective lens on your microscope. Once calibrated, you can take linear, area, and other measurements directly on the captured images. Note that a physical calibration slide is not included with the camera.
What are the most common issues reported by users?
Based on compiled buyer reviews, the most frequently mentioned challenges involve the camera’s autofocus behavior, which some find intrusive and difficult to override for sharp manual focus. Other users report that images can appear noisy and that colors may not be perfectly accurate straight out of the camera, though the software provides tools for adjustment. For other detailed product analyses, check out our Reviews section.
