Klein VDV500-705 Review: For Cable Installation Technicians
The Klein Tools VDV500-705 is a straightforward analog tone and probe kit designed for tracing and mapping non-energized wires across various cable types.
By Elvis Dicki
Updated October 21, 2026
In the world of network installation and low-voltage electrical work, the ability to accurately trace and identify cables is fundamental. The Klein VDV500-705 is a tone generator and probe kit designed specifically for this task, targeting technicians, IT professionals, and installers who work with Ethernet, telephone, coax, speaker, and data cables. This analog tool kit provides a simple, reliable method for tracing non-energized wires and performing pin-to-pin mapping without the complexity of digital interfaces. For those handling cable installations, diagnostics, and troubleshooting in residential or commercial settings, the VDV500-705 offers a focused set of features in a durable package.
The bottom line is that the Klein VDV500-705 is a purpose-built tool for straightforward wire tracing and mapping, excelling in simplicity and physical durability for field use, though it lacks advanced digital diagnostic capabilities.
Prime Klein Tools VDV500-705 Tone Generator Probe Kit
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Klein VDV500-705 at a Glance
| Specification | Detail |
|---|---|
| Style Name | Tone & Probe Test and Trace Kit |
| Model | VDV500-705 |
| Brand | Klein Tools |
| Compatible Cables | Ethernet, Telephone, Speaker, Coax, Video, Data (RJ45, RJ11, RJ12) |
| Key Features | Tone Generator, Tracing Probe, Pin-to-Pin Wire Map Test, Work Light, Adjustable Volume |

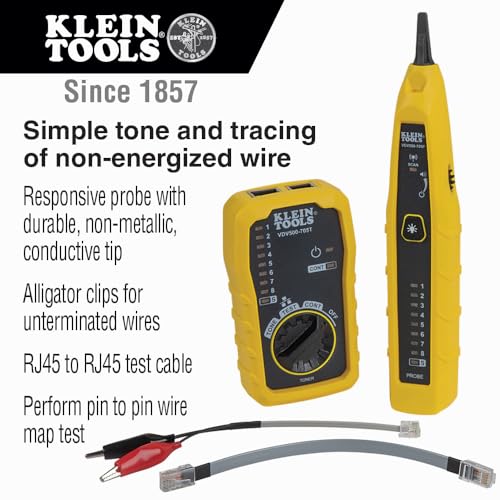

| Included Components | Tone Generator, Probe, Alligator Clips, RJ45 to RJ45 Test Cable |
| Power Source | Battery Powered (AAA batteries included) |
| Warranty | 1 Year Manufacturer |
| Item Weight | 10.1 Ounces |
| Item Dimensions | 10.5 x 7.2 x 1.5 inches |
Design and Build

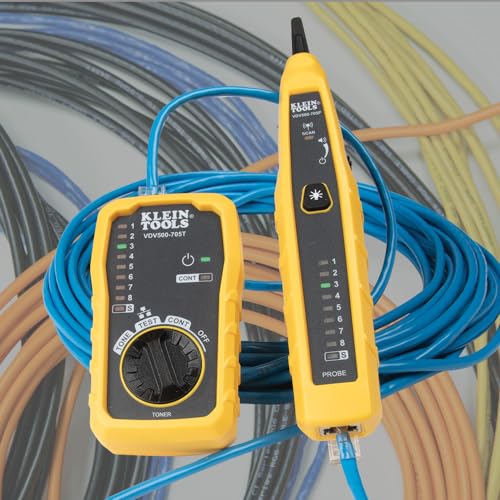

Klein Tools brings its long-standing reputation for professional-grade hand tools to this wire tracer kit. The design is utilitarian and focused on field durability. The kit includes two primary units: a tone generator and a responsive probe. The probe features a durable, non-metallic conductive tip, a design choice that helps prevent short circuits and protects sensitive connection points during tracing. The overall dimensions and weight suggest a compact kit that is suitable for carrying in a tool bag or pouch. The construction materials are not specified in detail by the manufacturer, but the brand’s emphasis on professional-grade tools implies a focus on resilience for job site use.
Performance and Features
Core Tracing and Mapping Function

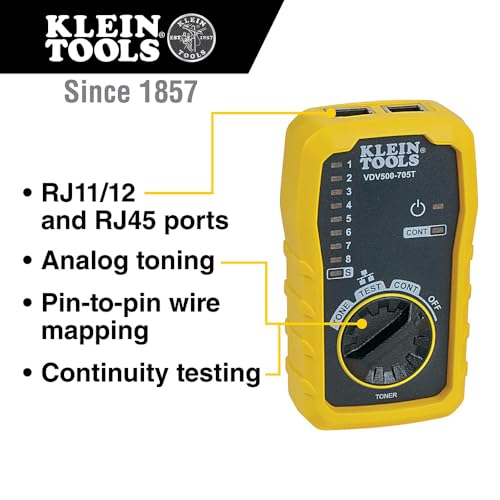

The primary function of the Klein VDV500-705 is the simple toning and tracing of non-energized wire runs. The tone generator applies an analog signal to a cable, which is then detected by the included probe. This allows a user to identify a specific cable within a bundle or behind a wall. A key performance feature is the ability for the toner and probe to work together to perform a pin-to-pin wire map test. This is crucial for verifying correct terminations in Ethernet or telephone cables and identifying faults like opens, shorts, or miswires without guesswork.
Connectivity and Accessories

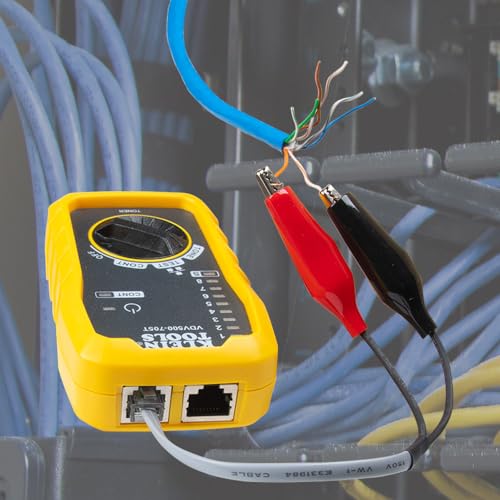

The kit is designed for versatility across different cable states. For unterminated wires, it includes alligator clips for easy connection. For testing terminated data cables directly, it provides an RJ45 to RJ45 test cable. This covers common scenarios from new installations (raw wire) to troubleshooting existing network drops. The probe includes a standard headphone jack for use in noisy environments, though headphones are not included.
Usability Enhancements

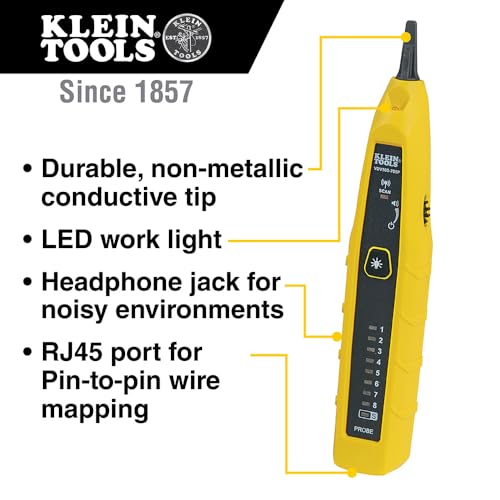

Several features are included to improve the user experience in real-world conditions. The probe tip is equipped with a work light, enabling use in dark spaces like server rooms, attics, or crawl spaces. The tone generator has an adjustable volume control, allowing the user to customize the audio feedback level to suit noisy or quiet environments. The kit is powered by AAA batteries, which are included, enabling immediate use out of the box.
Setup, Support and Ownership
Setup is straightforward, primarily involving inserting the included batteries. The analog nature of the tool means there is no software to install or digital interfaces to learn. The accessories—alligator clips and RJ45 cable—are ready to use. In terms of support, the product comes with a 1-year manufacturer warranty, which is a standard offering for tools in this category. Klein Tools, as an established American manufacturer, provides the backing of its brand reputation. There are no mentions of firmware updates or upgrade options, as this is a purely hardware-based diagnostic tool. For more insights on essential tech tools and diagnostics, explore our Tech Gear section.
What Owners Say
The overall user rating for the Klein VDV500-705 is positive. Owners generally appreciate its reliability for basic wire tracing tasks, the usefulness of the probe’s work light, and the convenience of having both alligator clips and an RJ45 cable included. The build quality is frequently noted as being solid and typical of the Klein brand. The primary limitation noted by users aligns with the manufacturer’s specification: it is designed only for non-energized wires. Some users comparing it to more advanced digital testers point out the lack of features like digital readouts or advanced fault diagnosis, but for its intended analog tracing purpose, it receives favorable feedback.
Pros and Cons
Pros
- Reliable analog tracing for open, non-energized wire runs
- Performs accurate pin-to-pin wire mapping
- Durable, non-metallic probe tip protects connections
- Integrated work light on probe for low-light areas
- Includes essential accessories (alligator clips, RJ45 cable)
- Battery powered with cells included for immediate use
Cons
- Only works on non-energized wires
- No advanced digital readout for complex diagnostics
- Volume adjustment is basic
- Lacks features found in more expensive digital cable testers
- Headphones for noisy environments not included
- No capability for testing energized lines or advanced network stats
Who Should Buy It (and Who Should Skip It)
The Klein VDV500-705 is ideally suited for network cable installers, low-voltage technicians, IT support staff, and telecom professionals who need a dependable, no-fuss tool for tracing cables and verifying basic wire maps in new installations or during troubleshooting. It’s perfect for those who value simplicity, physical durability, and quick deployment over digital screens and advanced protocol testing. It also fits well for educational or home lab environments where understanding basic cable continuity and mapping is the goal. You can find other practical tool reviews in our main Reviews hub.
This kit should be skipped by professionals who routinely need to test energized lines, perform advanced network qualification tests (like length, attenuation, or crosstalk), or require digital documentation of test results. Those working exclusively with complex, active network diagnostics should consider a dedicated digital cable certifier or analyzer instead. For those interested in the foundational knowledge behind many tech tools, our Cybersecurity resources may provide useful context.
Final Verdict
The Klein Tools VDV500-705 Wire Tracer Tone Generator and Probe Kit accomplishes its designed purpose effectively. It provides a straightforward, analog solution for tracing and mapping non-energized wires across a wide range of low-voltage cable types. The inclusion of a work light, adjustable volume, and both clipping and RJ45 connection methods makes it a practical choice for field technicians. Its strengths lie in its simplicity, durability, and focused feature set that covers the most common cable identification tasks.
However, its limitations are clear and inherent to its design. It is not a tool for diagnosing live circuits or providing the detailed analytics of a digital network tester. For users whose needs are confined to basic continuity testing, wire identification, and pinout verification, the VDV500-705 is a reliable and professionally trusted option. For those requiring more, it serves as a reminder that tool selection must always match the specific job requirements. For comparisons on how different tools solve specific problems, check out our analysis on AI smart home devices.
FAQs
What types of cables can the Klein VDV500-705 trace?
The kit is designed to trace non-energized wires in Ethernet (RJ45), telephone (RJ11/RJ12), speaker, coaxial, video, and various data cables. It uses a tone generator and inductive probe to identify individual wires or cables within a bundle.
Can it test live or powered cables?
No. The manufacturer explicitly states it is for tracing non-energized wire only. Using it on live cables could damage the tool and is a safety hazard. Always ensure the circuit is de-energized before connecting the tone generator.
What is a pin-to-pin wire map test?
This is a test where the toner and probe are used together to verify that each wire (or pin) at one end of a cable is correctly connected to the corresponding wire at the other end. It helps identify miswires, opens, shorts, and split pairs in cables like Ethernet.
Does the kit require any additional purchases to function?
The kit includes the tone generator, probe, alligator clips, an RJ45 to RJ45 cable, and AAA batteries. It is operational out of the box. The probe has a headphone jack for use in noisy areas, but headphones are not included and would need to be purchased separately if desired.
